HVAC Duct Wrap Insulation Reflective 2 Sided Closed Cell Insulation Foam Foil Backed XLPE Foam

Product Categories

Thermal Insulation Foam [119]
Air Conditioner Insulation Foam [51]
Construction Heat Insulation Foam [135]
HVAC Insulation Foam [98]
Fire Retardant Insulation Foam [57]
Cross Linked PE Foam [182]
Closed Cell Flotation Foam [29]
Acoustic Soundproofing Foam [74]
Anti Static Polyethylene Foam [30]
Reflective Insulation Foam [36]
Polypropylene Foam Rolls [21]
Foam Camping Mat [32]
Foam Outdoor Sports Equipment [16]

Cyg Tefa Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

HVAC Duct Wrap Insulation Reflective 2 Sided Closed Cell Insulation Foam Foil Backed XLPE Foam

Name: HVAC Duct Wrap Insulation Reflective 2 Sided Closed Cell Insulation Foam Foil Backed XLPE Foam
Brand: Green Thermal
Price: 0.12 USD

Wholesale HVAC Duct Wrap Insulation Reflective 2 Sided Closed Cell Insulation Foam Foil Backed XLPE Foam from china suppliers

Brand Name : Green Thermal

Model Number : XLPE foam Insulation

Certification : ISO9001, ISO14001, IATF16949,FMVSS 302,UL94 HF-1,RoHS,CE,etc.

Place of Origin : Guangdong, China (Mainland)

MOQ : 2000 SQM

Price : $0.12 - $9.16 /sqm

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 tons per month

Delivery Time : 12-25 Work days

Packaging Details : PE bags or customized

Density : 60-200kg/m3

Thermal conductivity : ≤0.031W/mk

Name : Insulation materials for building

Temperature range : -50℃~110℃

Color : Silver,Black,blue and so on

Contact Now

HVAC Duct Wrap Insulation Reflective 2 Sided Closed Cell Insulation Foam Foil Backed XLPE Foam

Polyethylene foam sheets xlpe foam is made of Low-Density PE Polymer. Commonly made and used as an insulation & protective material for various Industry applications.CYG foam is a strong, resilient closed-cell foam and it has several outstanding physical properties such as;

Closed cell cross-linked polyethylene foam
Excellent thermal insulation
Lightweight
Cost-effective
Easy to fabricate
Non-dusting
Superb strength, and tear resistance
High shock absorption
Flexibility

Specifications

Foam Type: XPE FOAM / XLPE FOAM + AL Film + ADHESIVE
Property		Standard	Unit	Value
Density		-	Kg/m³	33.33
Tensile Strength	Transverse	ISO-1798	MPa	0.39~0.41
	Longitudinal			0.23~0.28
Tearing Strength	Transverse	ISO-8067	Kn/m	1.84~2.26
	Longitudinal			1.32~1.40
Compression 25%		ISO-3386-1	kPa	36.80
Compression 45%		ISO-3386-1	kPa	66.70
Compression 50%		ISO-3386-1	kPa	96.90
Compression Set 25% 0.5H		ISO-1856	%	15.80
Compression Set 25% 24H		ISO-1856	%	5.80
Operating Temperature Range		Internal	°C	(-40,+80)
Water Absorption % Volume (Maximum)		Internal	%	0.50
Thermal Conductivity		JIS A1412-2	W/mK	0.040
Shore - C		ASTM D2240	°C	23
Flammability		FMVSS302	mm/min	-

Additional Information

● All tests were carried out in 23°C ± 2.

● Data represents typical values measured on a 15mm thick specimen and should be considered as guidelines only.

● Processing method by eletronic heating.

● 12 kg/100m2 glue.

Raw material: LDPE, PE foam+Alu foil
Density: 25~333kg/m3
Length: customized
Wide: 70~1800 mm
Thickness:

xpe 2~3mm 3~12mm
Ixpe 0.1~0.5mm 0.5~3mm, 3~10mm
Color: black,white and gray,other colors can be customized
Shore hardness: 10~80 degree
Reflective:96%~97%
Structure:Closed cell
Surface smooth: Alu
Flammability:B1 grade
Refractoriness:100-150 degree
Thermal Conductivity:0.040~0.095 w/m.k
Water Absorption:(23degree,24h) 0.2~0.6%
Tearing Strength: 0.2~1.8 KN/m
Elongation at break :100%~240%
Tensile Strength: 0.2~1.6 Mpa
Compressed distortion: 2%~10%
Size change rate: -4%`-8%
Thermal conductivity: 0.040 ~0.095 w/m.k
Certificate: ISO9001,REACH,ROSH,IATF16949,CE
Packaging:roll, tape, gasket or seal formats

Applications

Insulation on the dashboard, door panels, door armrests
Lightweight product solution for automobile air duct
Using for head pillow case by PIP filling&foaming technology
Waterproof and soundproof car door material
As damping and soundproofing foam products around the front of the cockpit
Excellent Roof / Head Lining thermal insulation solutions
Automotive NVH products solutions

About CYG

CYG TEFA is the earliest PE foam manufacturing with scale production in China since 2002.Mainly produce XPE FOAM,IXPE FOAM,IXPP FOAM and ESD PRODUCT(Foam type: PE/EVA/PU/EPE/PP Plastic).Annual production capacity is about 6000 tons.2 bases one in Shen zhen and an other in Huzhou,with total 17 production lines.CYG Management control system: Kingdee / OA / Oracle.CYG have a professional team and technology.More than 30 R&D staff.Through the great variety of our products we provide people with a warm and quiet home and working environment.

HVAC Duct Wrap Insulation Reflective 2 Sided Closed Cell Insulation Foam Foil Backed XLPE Foam

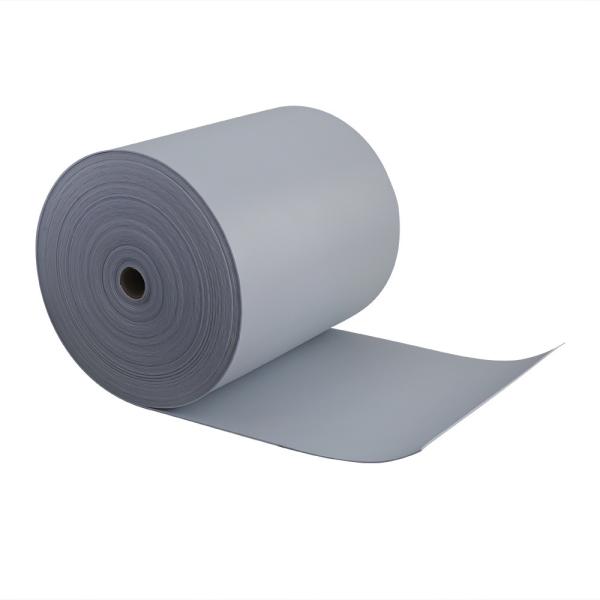

HVAC Duct Wrap Insulation Reflective 2 Sided Closed Cell Insulation Foam Foil Backed XLPE Foam Images
